Infrared solutions for a better world.
NDIR sensors – IR emitters – IR detectors.

Welcome to Micro-Hybrid Electronics IR application center in Tucson AZ

Manufacturing at Micro-Hybrid in Tucson is focused on infrared emitters, enabling components for spectroscopic sensors used for infrared gas analysis. Our application team, located at Arizona Tech Park, is on site for project partners and customers.

Product and sensor solutions for NDIR gas analysis

We  support and consult customers with their gas measurement projects to help them find the perfect match of IR emitters and detectors or the complete NDIR gas sensor module. Our customers benefit from our unique product range. High-quality IR sources, thermoelectric detectors, and pyroelectric detectors from one supplier.

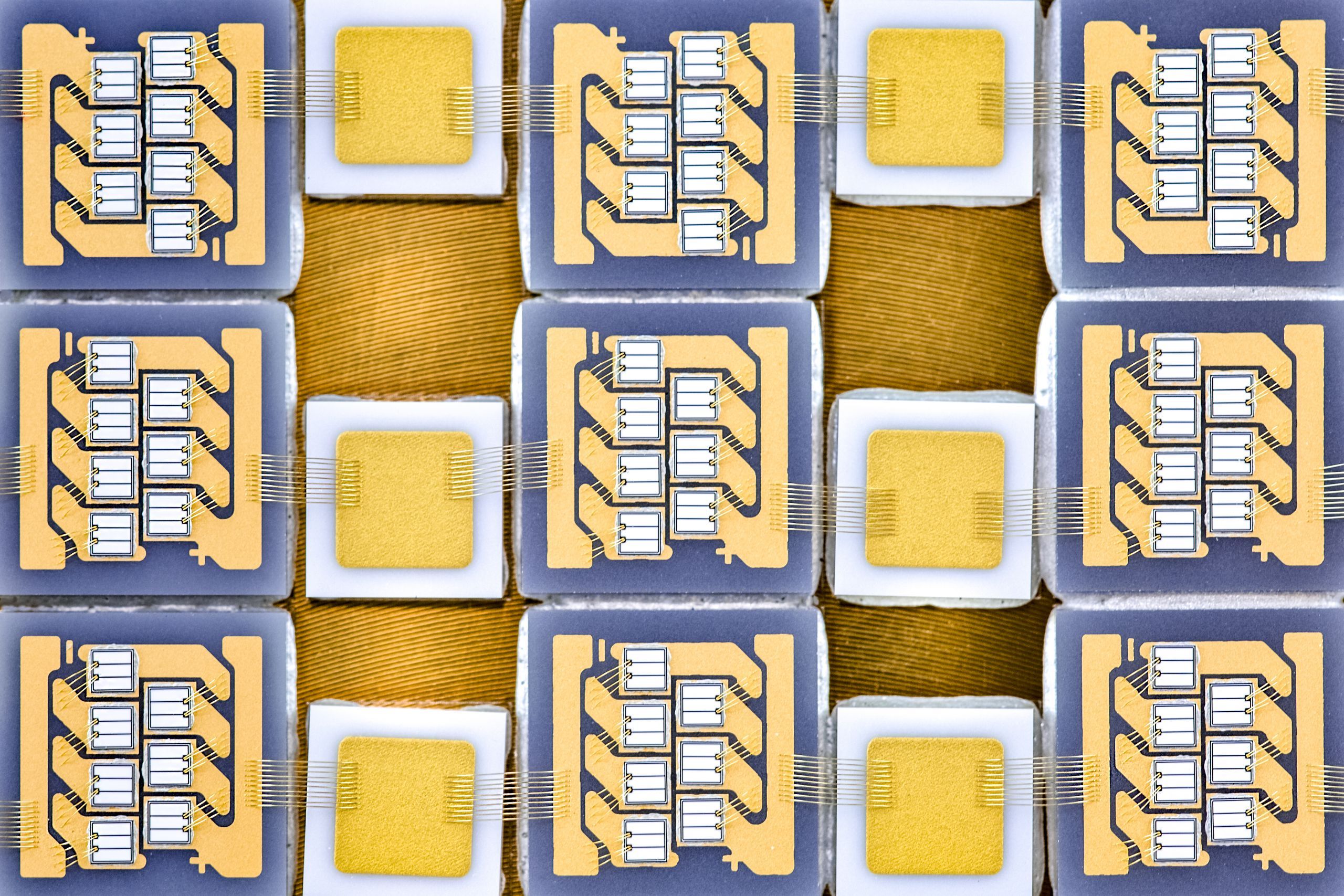

IR MEMS chips for a new generation of Infrared emitters

In our MEMS fab we are producing high quality IR emitter chips with best performance. These IR chips are key components for manufacturing high-performance IR emitter components in the Micro-Hybrid Electronics Assembly Hub in Germany.

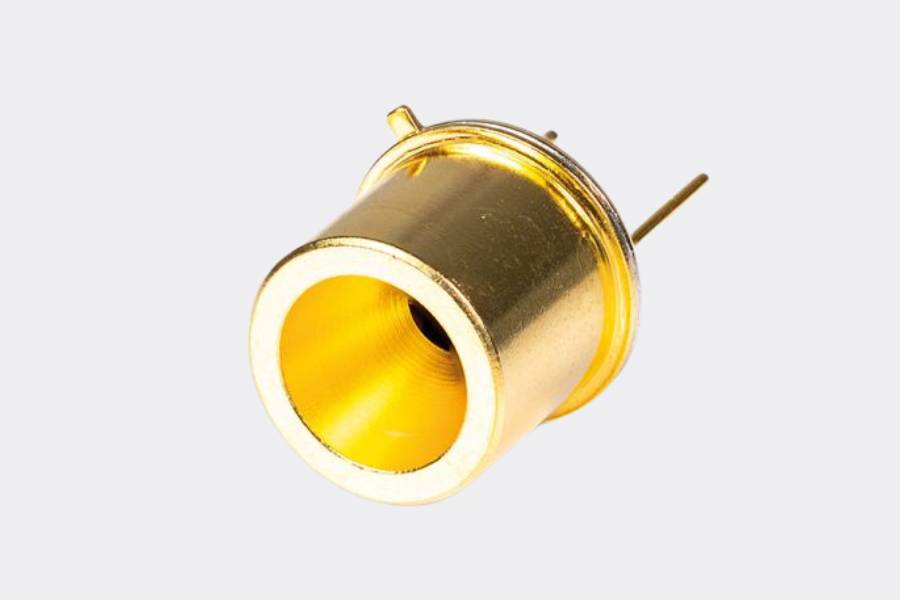

IR sources, Thermopile & Pyro detectors, NDIR gas sensors,
Tools for evaluation and testing available in Micro-Hybrid global online-shop

Product highlights all available online

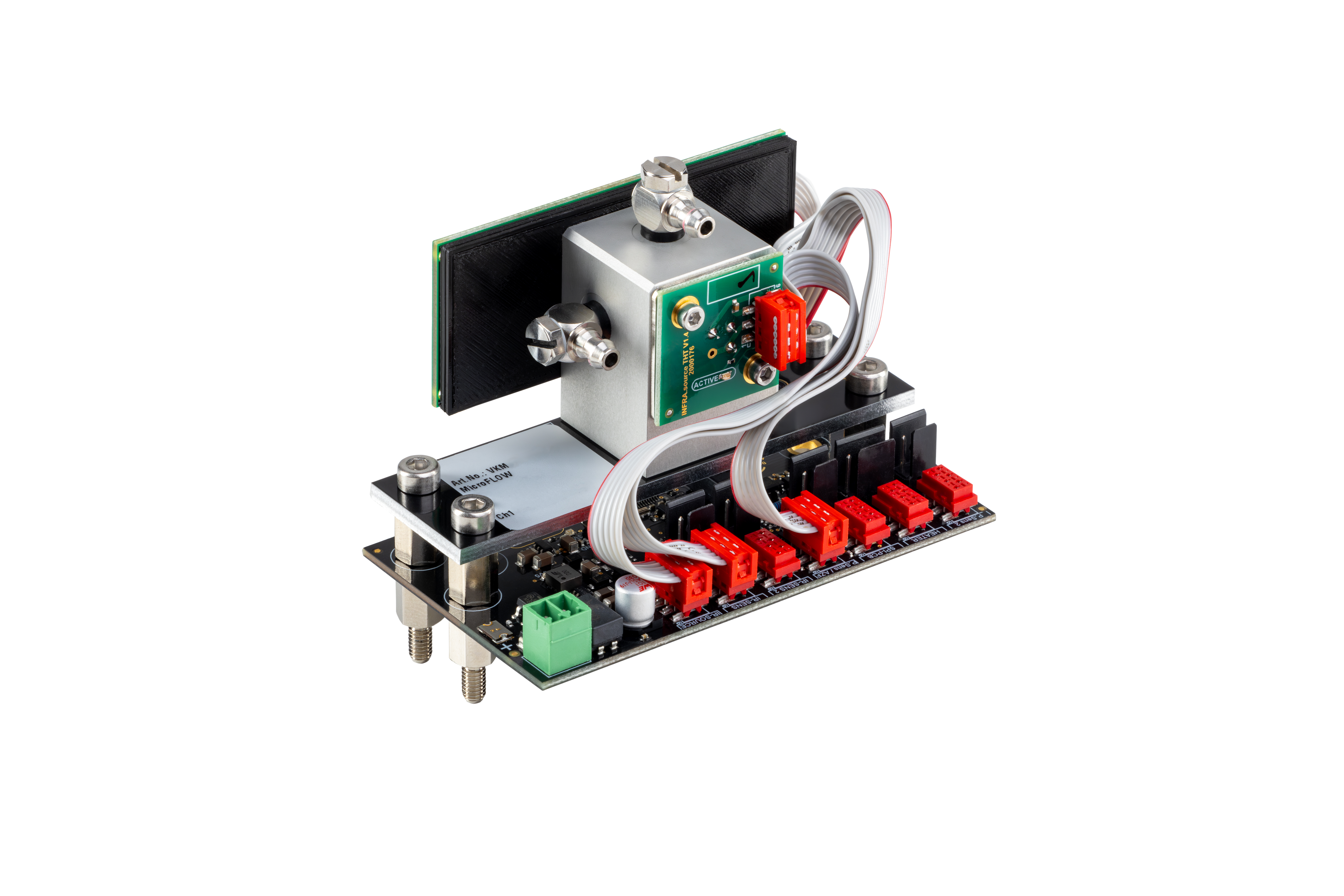

Gas measurement In the spectral range from 2 μm to 12 μm up to the ppm range

MicroFLOW sensors were specially developed for high-quality NDIR gas analysis. In the spectral range from 2 μm to 12 μm, carbon dioxide, carbon monoxide, hydrocarbons and nitrous oxide can be reliably detected up to the ppm range with this new sensor platform. In order to be able to adapt gas analyses as flexibly as possible to individual measurement tasks, the individual components designed modularly. This resulted in a »modular system« in which the various photometric components such as detectors, emitters, measuring sample cell, etc. can be exchanged. Aluminium with bright gold coating and passivated stainless steel is used as the standard sample cell material. PEEK (polyetheretherketoe) is also available for special applications.

Features

  • high stability
  • low detection limit
  • using high-performance light emitting diodes (IR-LED) and thermal micro radiators, which were adapted to the needs of gas measurement technology

Quality inside

  • Rugged sensor design
  • Low power consumption <2W @ 24V
  • Different Interfaces (RS232, CANbus)
  • Low drift
  • Witec inside: MARS-Tool Software

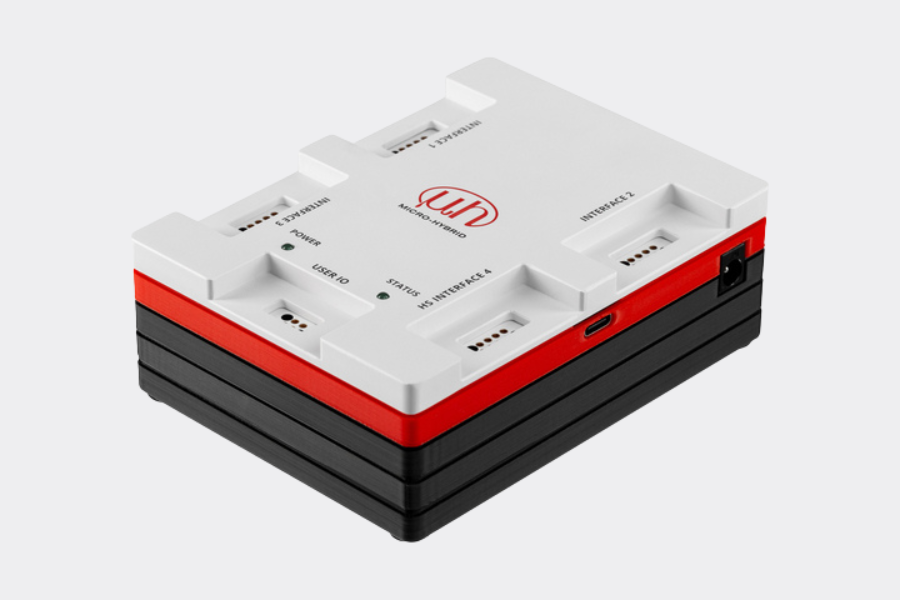

All-in-one test kit for the evaluation of IR emitters and IR detectors

With the eNDIRi² evaluation kit basic, thermopile or pyroelectric detectors can be tested and evaluated together with the IR emitters from Micro-Hybrid. You can optimise the operating parameters for the respective application using the software. The simple control of the IR emitter as well as the readout and monitoring of the output data of the detectors allow flexibility for testing and optimising your own gas measurement system. The measuring cuvette included in the set enables measurements to be taken in the shortest possible time.

The eNDIRi² evaluation kit basic contains all the hardware you need for a test setup under laboratory conditions. The eNDIRi2-app software developed specifically for the eNDIRi² is available free of charge. Your NDIR evaluation kit 2.0 basic is ready to use immediately. You save valuable time in the project as you do not have to develop your own circuit or software for initial test measurements.

Features

  • Complete IR portfolio consisting of IR emitters, thermopile detectors and pyroelectric detectors on TO39 sockets can be tested
  • Complete test kit with all interfaces for infrared components and necessary plug connections
  • Four IR components included in the set (2 IR emitters, 1 thermopile detector, 1 pyroelectric detector)
  • A range of NDIR bundles for various sample gases available from stock
  • Includes eNDIRi2-app software for evaluating and exporting test measurements, configuration can also be saved
  • Component library available for all standard IR-components from Micro-Hybrid
  • Configurable emitter interface with additional, external clock input
  • Detector boards with adjustable amplification
  • Highly reflective cuvette included in the test kit
  • All cables for connection to PC and power supply included
  • User io cable for connection to individual clock source
  • Magnets for attaching the cuvette to the main unit

Quality inside

  • Ready to measure: evaluation of IR emitters and detectors in the shortest possible time
  • Plug and play: test kit with main unit, all interfaces, a cuvette and IR components for CO2
  • Ready to go immediately with NDIR bundles for e.g. N2O, NO, CO, hydrocarbons and alcoholic compounds
  • Software eNDIRi2-app for free
  • Video instructions for setting up the system

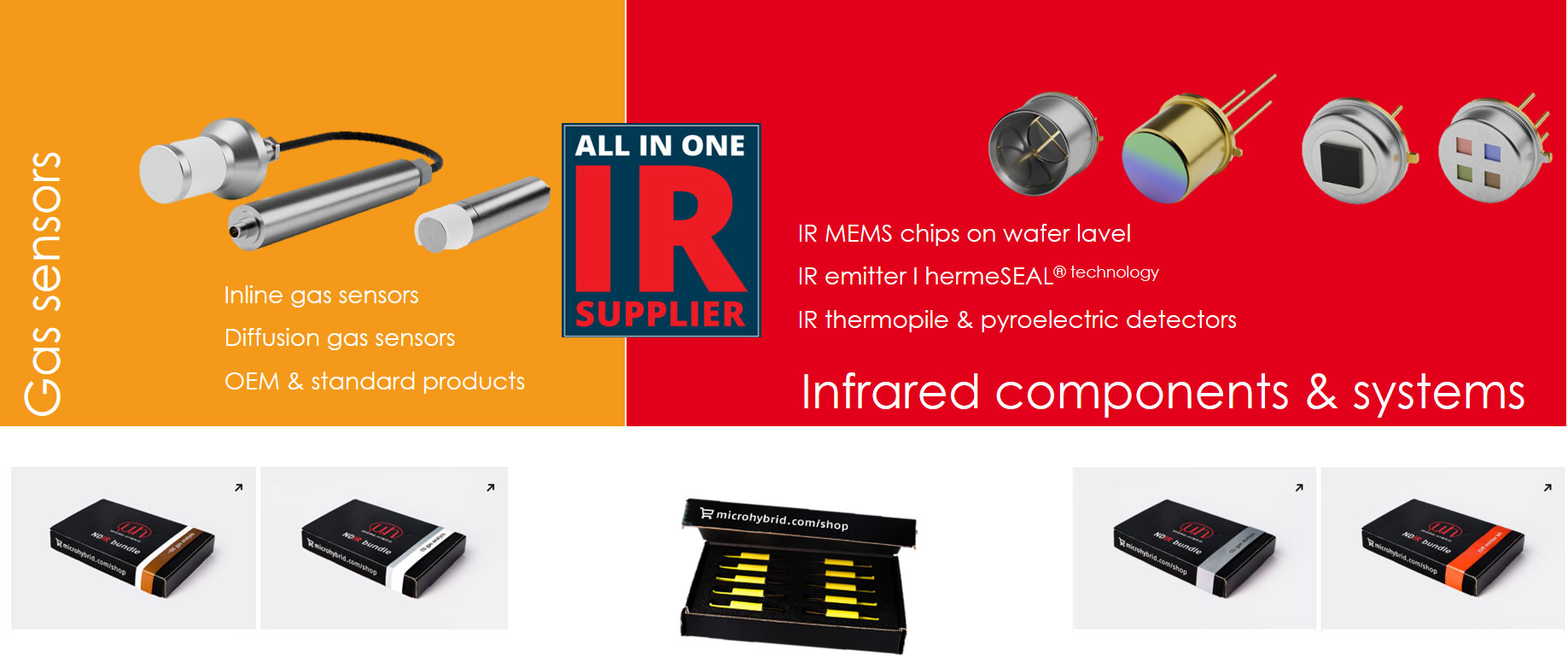

We deliver the full range of Infrared technology from MEMS chips to complete NDIR gassensing modules

With more than 20 years of experience in the development and production of IR components and gas sensors, Micro-Hybrid is one of the world's leading manufacturers of high-quality OEM gas sensors and sensor modules. We provide full service to our customers and also develop individual solutions up to 100% customer specific. At the Micro-Hybrid IR application center in Tucson our team provides technical consulting for IR measurement tasks in all industrial fields.

  • Infrared components & systems
    • IR MEMS chips on wafer level

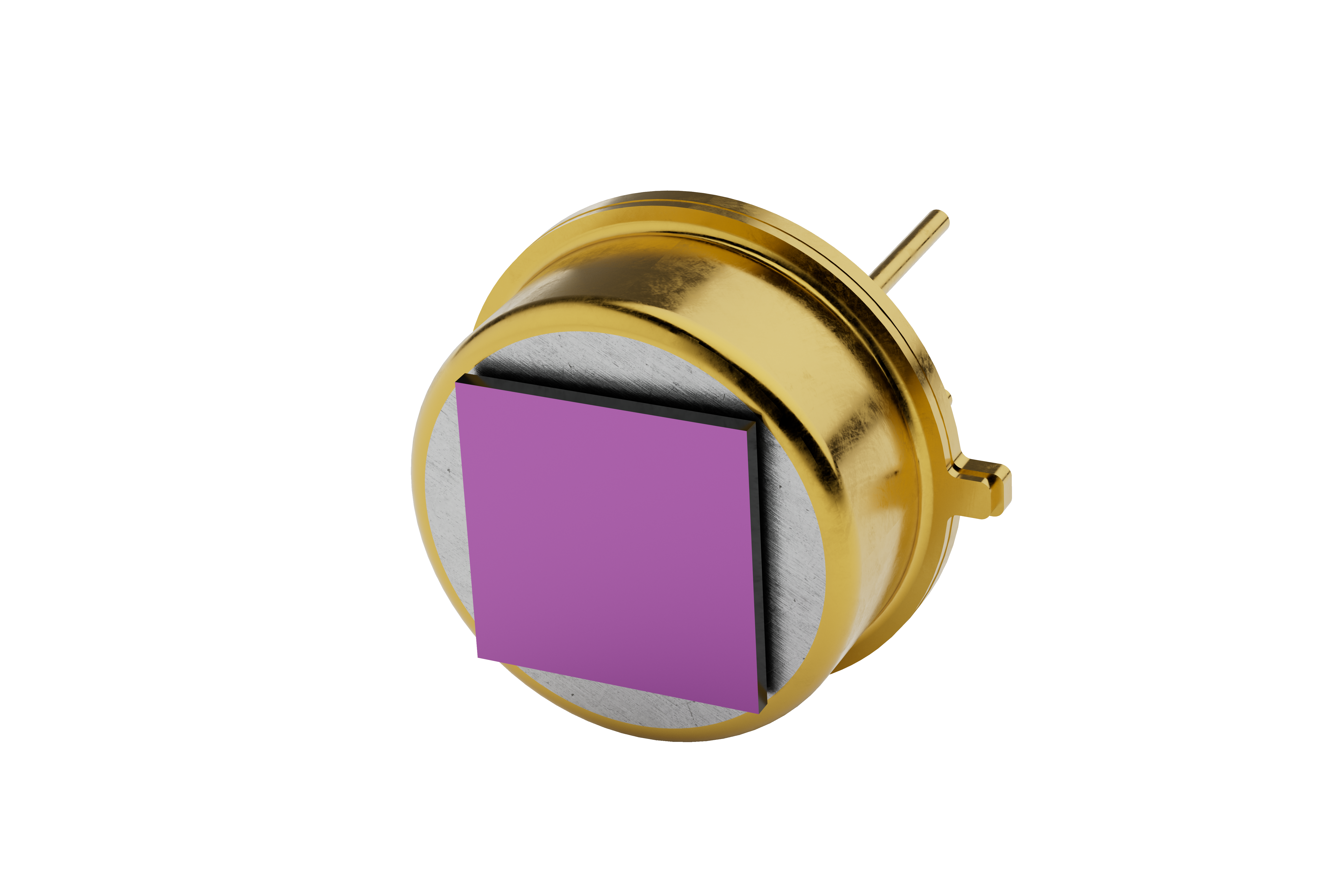

    • IR emitter | hermeSEAL® technology
    • IR thermophile & pyroelectric detectors

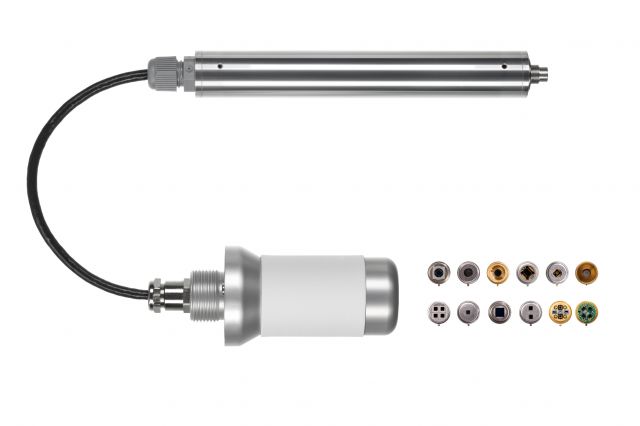

  • Gas sensors
    • Inline gas sensors
    • Diffusion gas sensors
    • OEM & standard products

NDIR gas measurement application fields

Industrial

NDIR gas detectors from Micro Hybrid are indispensable in industry, ensuring safety and efficiency by safeguarding against potentially hazardous gas leaks.

Applications

Gas Leak Detection: NDIR detectors swiftly identify gas leaks in chemical plants, safeguarding workers and facilities.

Emissions Control: Industries use NDIR to monitor emissions, ensuring compliance with environmental regulations and reducing their carbon footprint.

Indoor Air Quality: In offices and factories, NDIR detectors maintain healthy indoor air quality, preventing discomfort and health issues.

Challenges

Calibration: Precise calibration is crucial to maintain accuracy.

Cross-sensitivity: Detectors may respond to multiple gases, requiring advanced algorithms.

Hazardous Environments: Safety standards and maintenance are vital when deploying NDIR sensors in hazardous areas.

Our NDIR solutions tackle these challenges, offering reliability and peace of mind for industrial applications. How can we help you protect your workplace?

Medical

NDIR gas detectors play a pivotal role in healthcare. Patient monitoring, anesthesia, and diagnostic breath analysis are among the key applications of CO2 measurement.

Applications

Respiratory Monitoring: Accurately assessing exhaled CO2 levels during anesthesia or in ventilated patients.

Anesthesia Control: Maintaining precise gas concentrations during surgery.

Incubator Environments: Ensuring ideal conditions for premature babies in incubators.

Challenges

Precision: Achieving the utmost accuracy in critical medical scenarios.

Calibration: Determining the optimal frequency for sensor calibration to ensure reliable measurements.

Infection Control: Ensuring detectors remain contamination-free in clinical settings.

Our NDIR technology at Micro Hybrid Electronic, Inc. help tackle these challenges, contributing to safer healthcare practices and advanced diagnostics. How can we enhance your healthcare solutions?

Safety

NDIR gas detectors are essential tools for safety, both in industrial settings and at home. The detection of relevant gases ensures peace of mind for everyone.

Applications

Industrial Safety: Detecting hazardous gas leaks in factories, preventing accidents.

Indoor Air Quality: Ensuring healthy and safe environments in our homes and workplaces by monitoring harmful gases like CO2.

Fire Prevention: Identifying gas leaks early to reduce fire risks.

Challenges

Accuracy: Maintaining precise gas measurements for early detection.

Integration: Seamlessly fitting detectors into diverse settings, from industrial complexes to homes.

Affordability: Making safety solutions accessible to all.

Our NDIR technology at Micro Hybrid Electronic, Inc. are addressing these challenges, promoting safety and well-being for both industry and everyday life. How can we help safeguard your environment?

Agricultural

NDIR gas detectors are essential in agriculture, contributing to crop health, environmental responsibility, and food production. They act as modern-day farming assistants.

Applications

Greenhouse Gas Control: Managing CO2 levels in greenhouses to enhance plant growth.

Livestock Emissions Monitoring: Reducing methane emissions from cattle for sustainable farming.

Soil Health Assessment: Analyzing soil gases to improve crop yields.

Challenges

Precision: Ensuring accurate gas measurements in various agricultural conditions.

Durability: Designing detectors that withstand harsh outdoor environments.

Cost-Effectiveness: Making this technology accessible to all farmers.

Our NDIR technology at Micro Hybrid Electronic, Inc. help address these challenges, empowering farmers to make informed decisions for efficient and sustainable agriculture. How can we support your agricultural endeavors?

Micro-Hybrid is also developing and producing advanced OEM eletronic modules. Are you thinking about outsourcing electronics development and want to talk to an expert about Technical implementation options?

Contact our sales team

One stop shop for customer specific electronic solutions

Outsourcing electronics development and production is highly efficient for most OEM manufacturers and offers many advantages. As a single source supplier, we support our customers in all project phases from conception to prototyping and series production. Engineering and consulting services at Micro-Hybrid application center:

The Micro-Hybrid application engineers support the engineering and development teams from the very first project stage to final series. We provide goal-orientend consulting for even complexe electronic projects in the fields of:

  • Sensor technology
  • Calibration of sensor systems
  • Software for evaluation of measurement systems in NDIR applications

Configurations of infrared components and designing electronics can be critical  in the development of sensor systems and modules. Micro-Hybrid's eNDIRi evaluation kit was especially made for these challenges. We also provide our customers support with the use of eNDIRi:

  • installation of hardware for electronics and IR sensors
  • nstallation of temperature, optical, electronic, infrared sensors and sensor systems
  • installation of informations ans evaluation software

We manage a smooth path from prototypes for series production. Our stage gate development process describes a holistic approach and encompasses all engineering disciplines and skills.

  • Physics
  • Electronics
  • Math and informatics

With our electronic solutions we help customers creating machines, equipment, and technical applications that advance global society. Therefore we develop and produce advanced electronic modules at our headquarters in Germany. (IPC, ESA, ISO certifed)

  • Ceramic based multilayer circuits (LTCC, HTCC, Thick film hybrid, FR4 and others)
  • Automated and manual SMD assembly
  • Chip on board technologies
